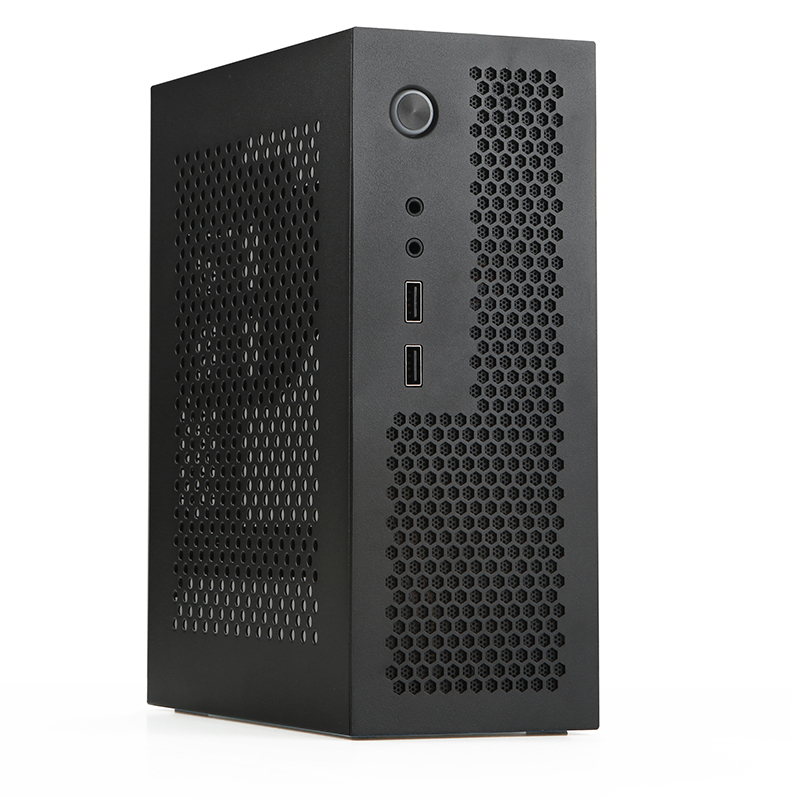

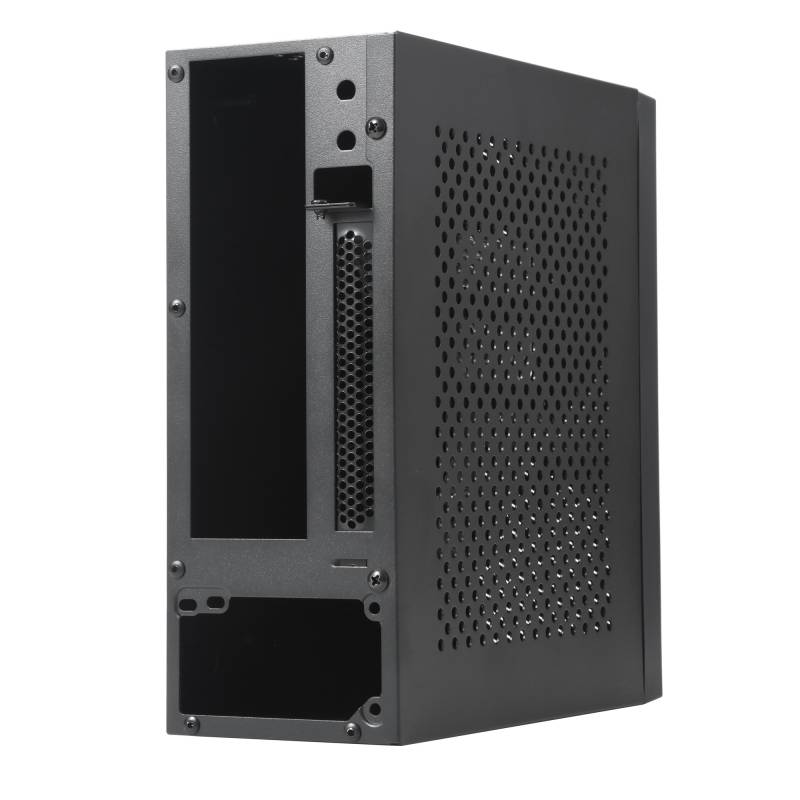

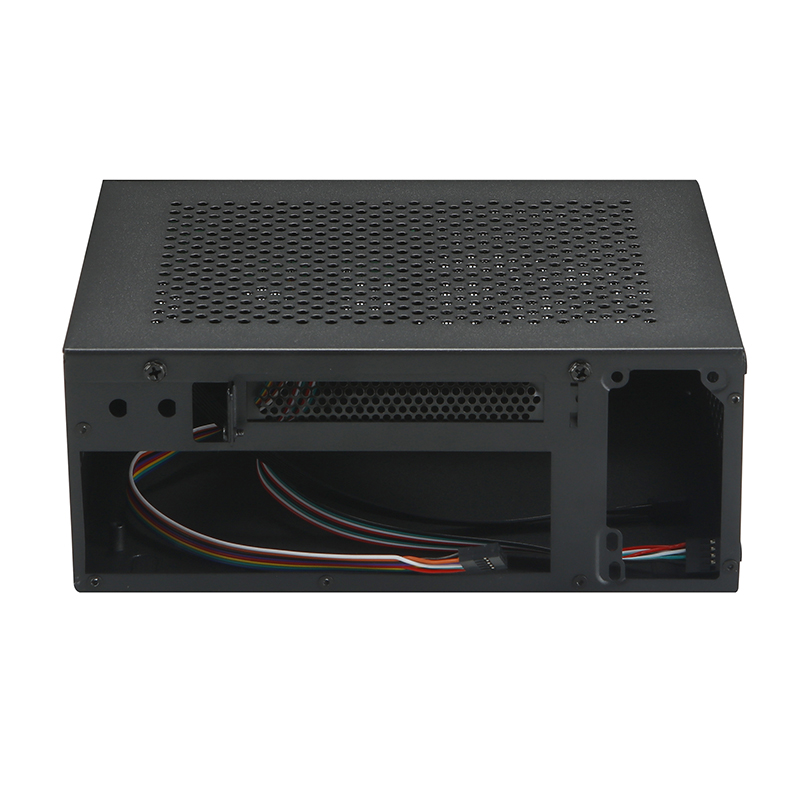

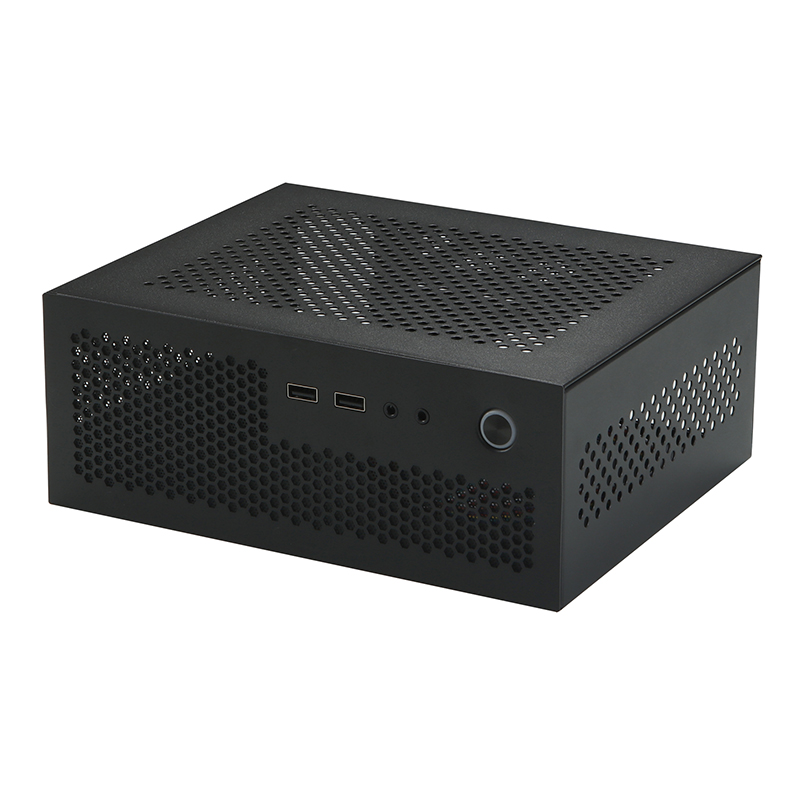

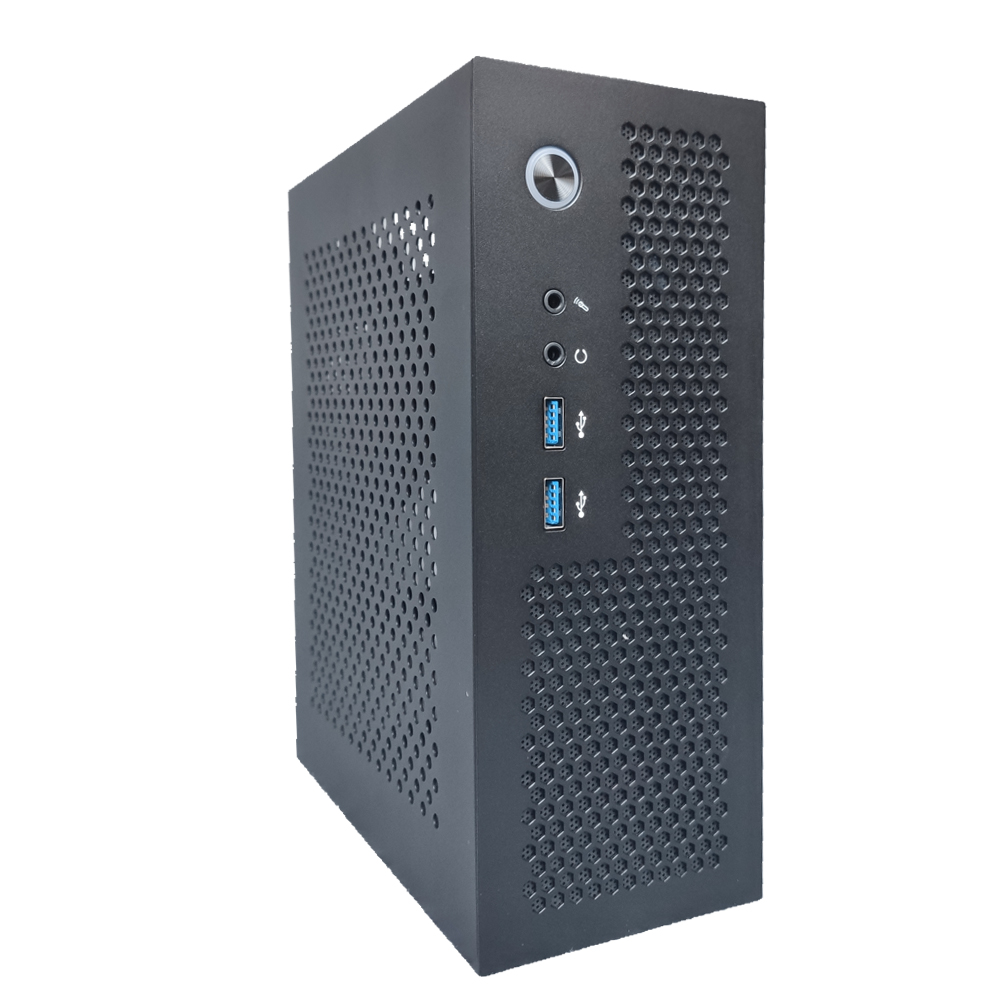

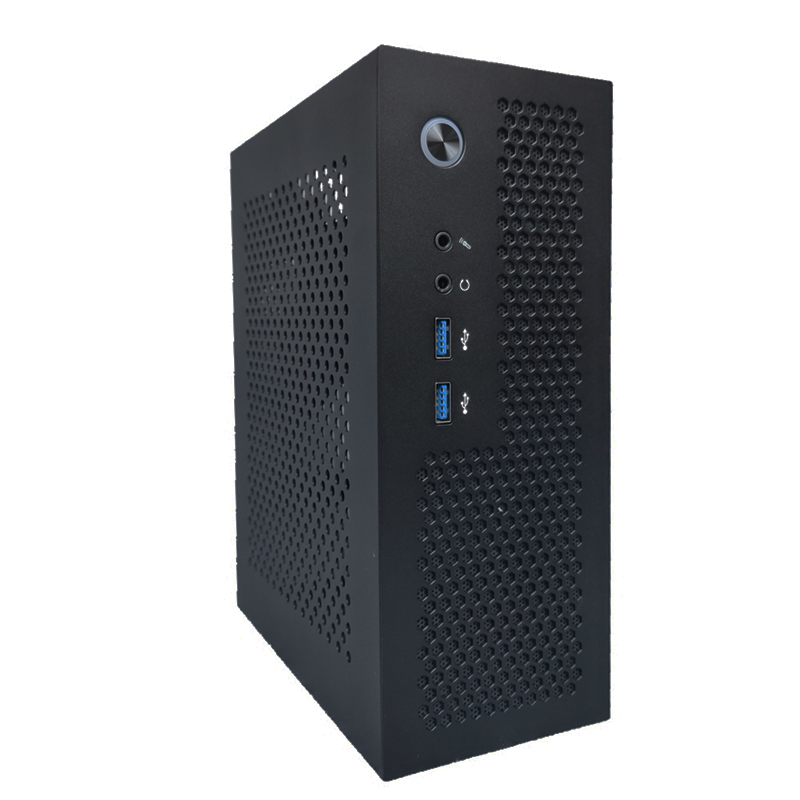

A09 mini ITX chassis A4 case Optional Type-C 10Gbps

Name: A09 mini ITX chassis A4 case Optional Type-C 10Gbps
SKU: 135
Availability: InStock

$28.00 – $33.00

A09-USB3.0/type-C

ITX moherboard
(170*170mm)

150mm PCIe device

Flex PSU (170×81.5×40.5mm)

64mm CPU radiator (max)
(When no PCIe device and Drive installed)

3.8L ultra-small volume

2.5″ or 3.5″ Drive 1pcs
(When no PCIe device installed)

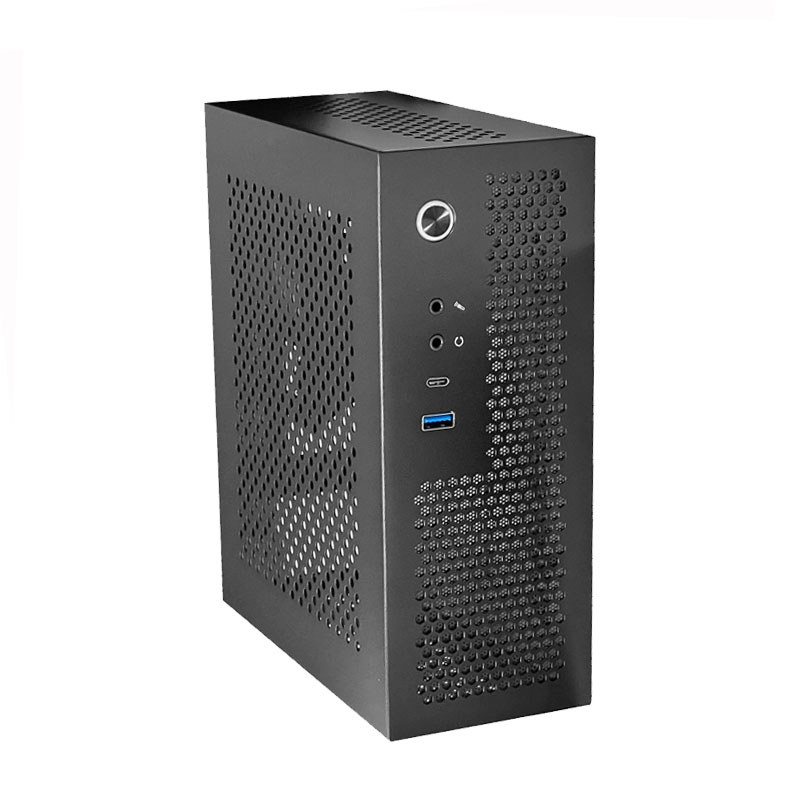

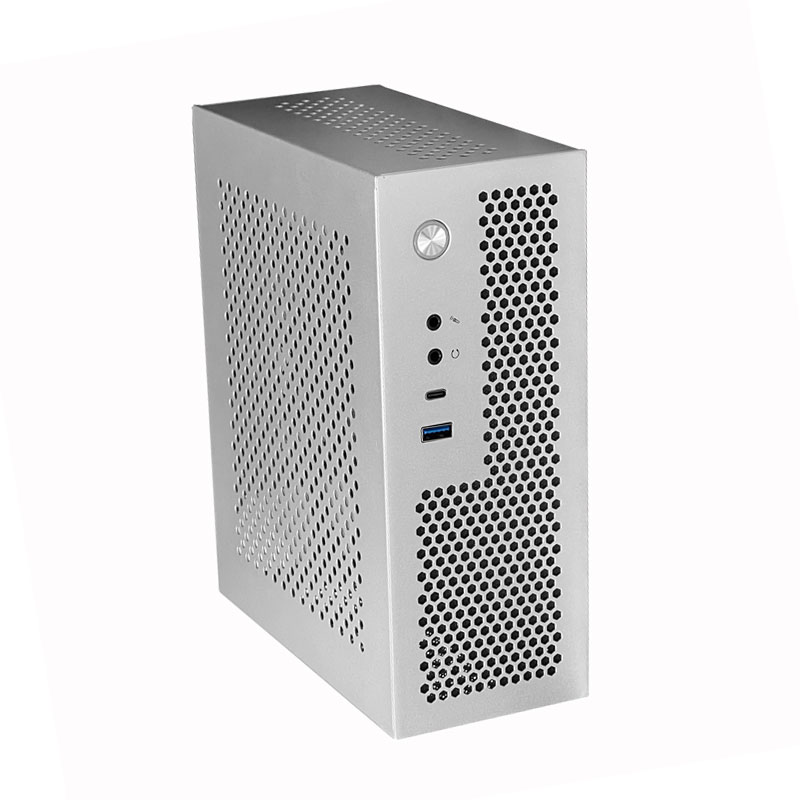

USB3.0 x1 / Type-C x1

Optional

Color

清除

Fast delivery within 48 hours

Good Quality
Safe Payment
Fast Delivery

Guaranteed safe checkout

SKU： N/A 分类： Core display chassis, Graphics card chassis, mini-ITX Chassis, Ultra-thin chassis 标签： A4 case, ITX case, ITX chassis, Steel

Model: A09
Chassis size: Length*width*height, 187*89*228mm (body)
Volume: 3.8L
Weight: 1160g
Motherboard: ITX (170* 170mm)
Power Supply: Flex, 150x81.5x40.5mm, Length≤170mm
CPU Radiator: Height≤64mm (extreme)
                        HDD/SSD(S/T):     Height
                          2.5”7mm  :       55mm
                          2.5”9mm  :       53mm
                          3.5”20mm:       35mm
                          3.5”25mm:       30mm
PCIe device: length ≤ 150mm, thickness ≤ 40mm,
                       extreme: length ≤ 180mm, tail thickness ≤ 10mm
Drive: 2.5" or 3.5" 1pcs
Riser: Optional (90° 5cm)

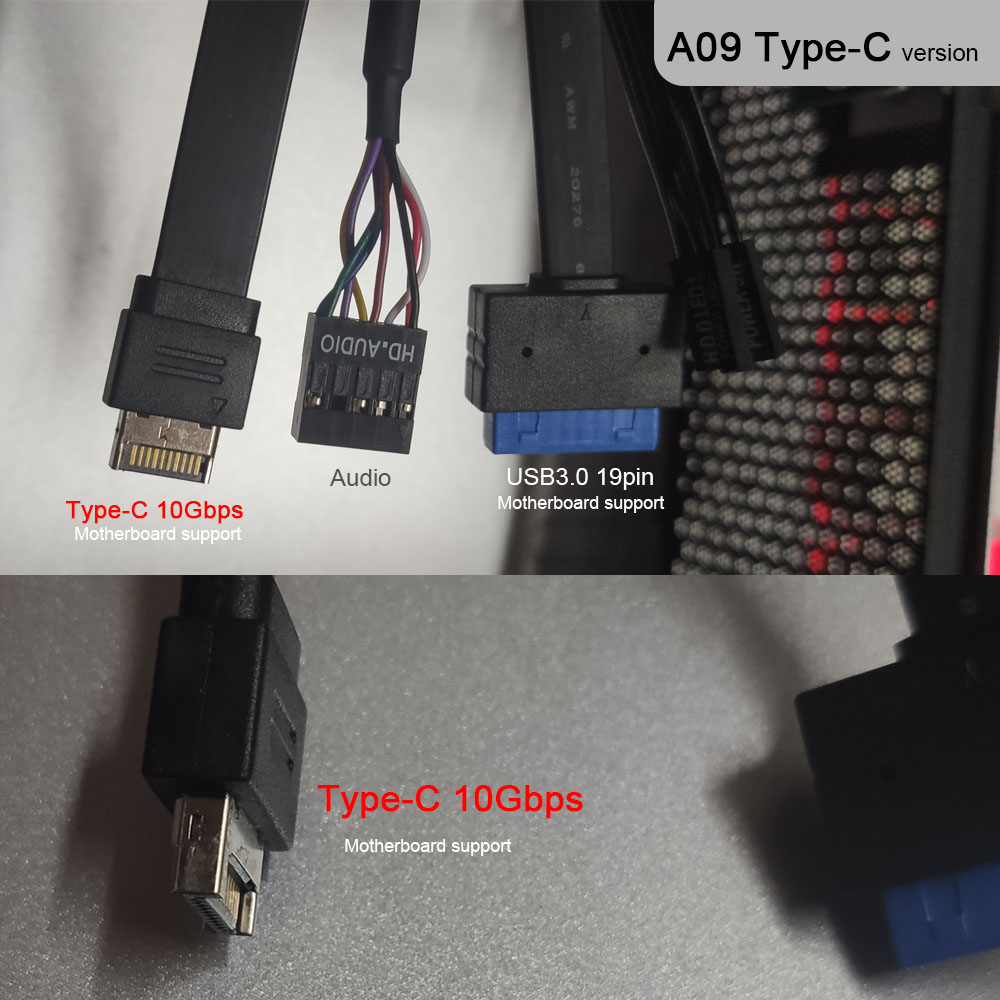

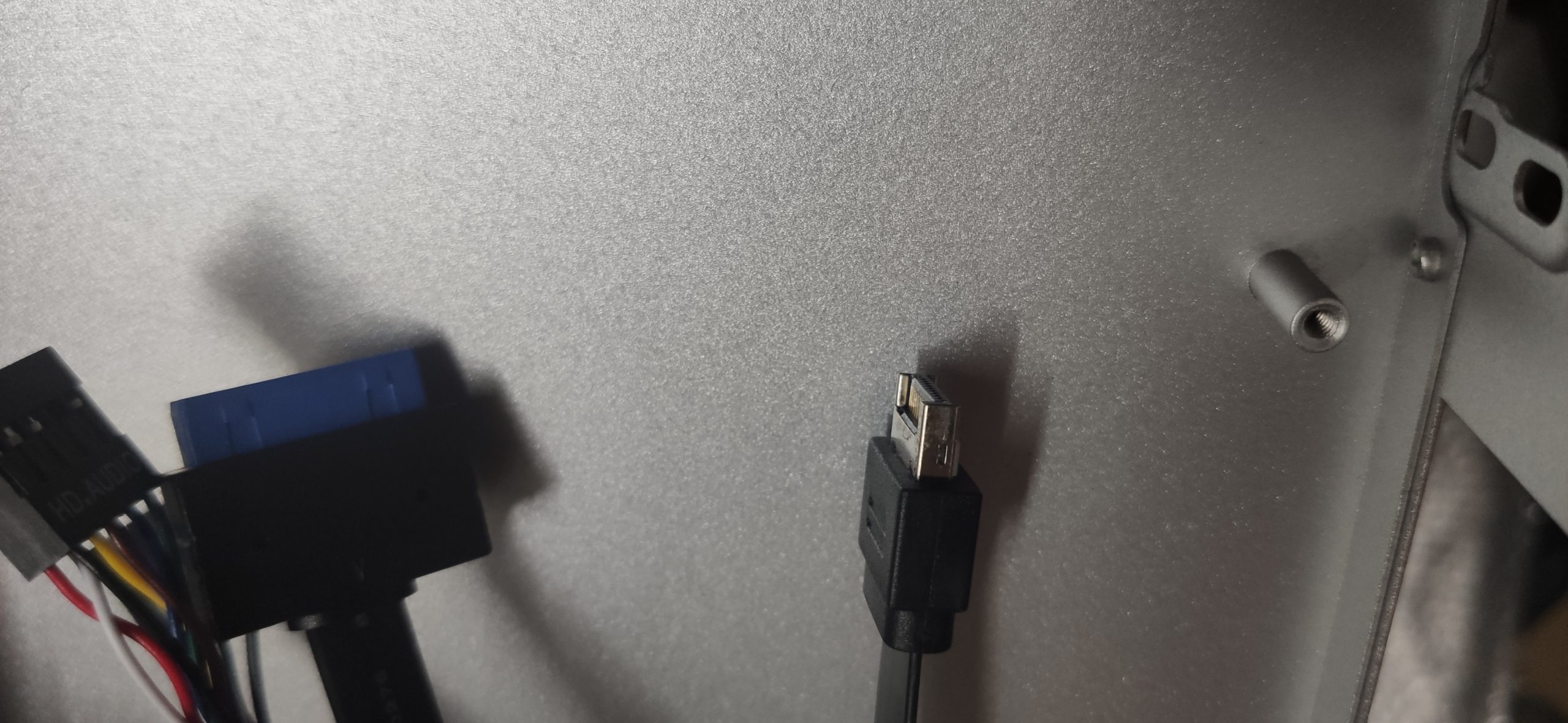

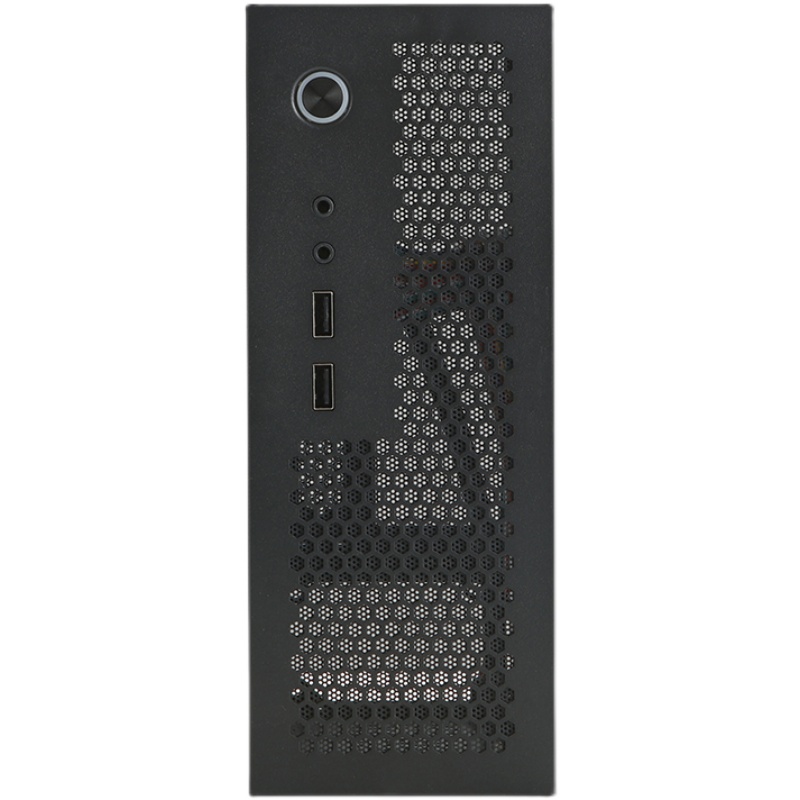

Front Interface: USB3.0*2(Optional: USB2.0 or Type-C(10Gbps)), Audio*1
